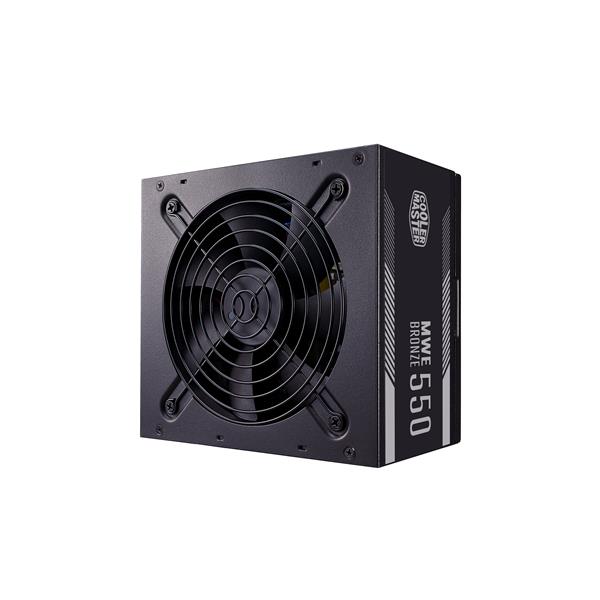

Cooler Master MWE Bronze 550W V2

Power Up
The MWE Bronze offers a simple, reliable way to power your mid-range system safely and efficiently. The 80 PLUS Bronze efficiency rating, DC-to-DC circuit design, discrete cables, silent mode, and 120mm HDB fan offer a power supply unit that's solid in features and performance while remaining simple. This PSU will handle all your core computing needs with none of the hassles or challenges of additional specialty features, software synchronization, or other bells and whistles. Just plug the cables you need into your components and get to work. For a great computing experience, you can’t go wrong with the MWE Bronze.

80 PLUS Bronze Efficiency
The efficiency of your power supply unit is important because it directly affects you system’s performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit’s ability to move power from the wall to your components. The higher a PSU’s efficiency is, the lower the total amount of power it needs to power your system. The MWE Bronze series has an 80 PLUS Bronze efficiency rating, meaning it has a guaranteed typical efficiency of 85%.

DC-to-DC Circuit Design
Power comes in multiple voltage levels. The wall delivers power in one voltage level but your components each need a specific voltage to operate properly. The process of converting raw power from the wall to the multiple voltage levels your parts need requires special components to complete this process quickly, efficiently, and safely. The MWE Bronze’s DC-to-DC + LLC technology was painstakingly crafted to accomplish this goal. The Dual Forward circuit layout has been designed to convert 12V power to 3V and 5V levels with minimal ripple noise, 80 PLUS Bronze efficiency, and reduced risk to your connected hardware.

Active Power Factor Correction
The many processes required by a power supply unit in order to take power directly from the wall or other fixed power source, convert it to the correct output required by the connected components, and then distribute that power to said components safely can be full of risks. This is why it’s important for a PSU to have the right protections and regulations to ensure this process runs correctly.

The MWE Bronze’s Active Power Factor Correction uses a specialized circuit to correct power factor, leading to reduced total harmonics, corrected AC input voltage, and increased overall efficiency output.

120mm HDB Fan
The constant struggle between cooling and noise is as old as the consumer PC industry itself. Keeping your components cool without having to hear about it while you work is still one of the greatest challenges for all fan based cooling technologies. The MWE Bronze tackles this problem with a 120mm HDB fan. The hydro dynamic fan bearing creates less friction, making it great for low RPM operations. This technology keeps the fan running smoothly and efficiently for longer, keeping the noise level down and extending the lifespan of the PSU.

Silent Mode
The MWE Bronze platform has a built in silent mode for low wattage operation. While your system is in standby mode or running at loads lower than 50W, the fan will not spin. This ensures complete silence during casual operation. Once your system passes the 50W load threshold, the 120mm HDB fan will activate automatically and cool the unit appropriately based on system use and needs.

Flat, Black Cables
For many PC Builders with aesthetics in mind, cabling can be on of the most troublesome parts of assembling a PC. Cables can be confusing, too short or too long, and they almost never look good. The MWE Bronze uses flat and flexible black cables to help deal with these problems. These cables are more discrete and flexible, making them easier to implement into your system while taking up less space. This is especially useful for smaller cases and preserving airflow.
Specifikationer:
Total power 550 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Input current 4 - 8 A
Combined power (+3.3V) 120 W
Combined power (+12V) 549.6 W
Combined power (+5V) 120 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 20 A
Max output current (+12V) 45.8 A
Max output current (+5V) 20 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Hold time 18 ms
Efficiency 85 %
Power Good signal delay range 100 - 500 ms
Power protection features Over power,Over voltage,Overheating,Short circuit,Under voltage
Motherboard power connector 20+4 pin ATX
Peripheral (Molex) power connectors (4-pin) 4
Motherboard power cable length 610 mm
Number of SATA power connectors 6
SATA power cable length 500,620,740 mm
Peripheral (Molex) power cable length 500,620,740,860 mm
EPS power connector (8-pin) Yes
PCI Express power connectors (6+2 pin) 2
ATX Power connector (24-pin) Yes
Purpose PC
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Bronze
Supported motherboard form factors ATX
ATX version 2.52
Silent mode Yes
Noise level (silent mode, <30%) 11.13 dB
Noise level (quiet mode, 50%) 15.6 dB
Noise level (full-load mode, 100%) 31 dB
Bearing technology HDB
Certification ErP 2014 Lot 3, CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
Colour of product Black
Cooling type Active
Fan diameter 120 mm
Number of fans 1 fan(s)
Fan speed 0 - 1500 RPM
Operating temperature range (T-T) 0 - 40 °C
Width 150 mm
Depth 140 mm
Height 86 mm
Weight 1595 g
Packaging width 190 mm
Packaging depth 260 mm
Packaging height 110 mm
Package weight 2013 g
Quantity per pallet 32 pc(s)
Master carton width 275 mm
Master carton length 570 mm
