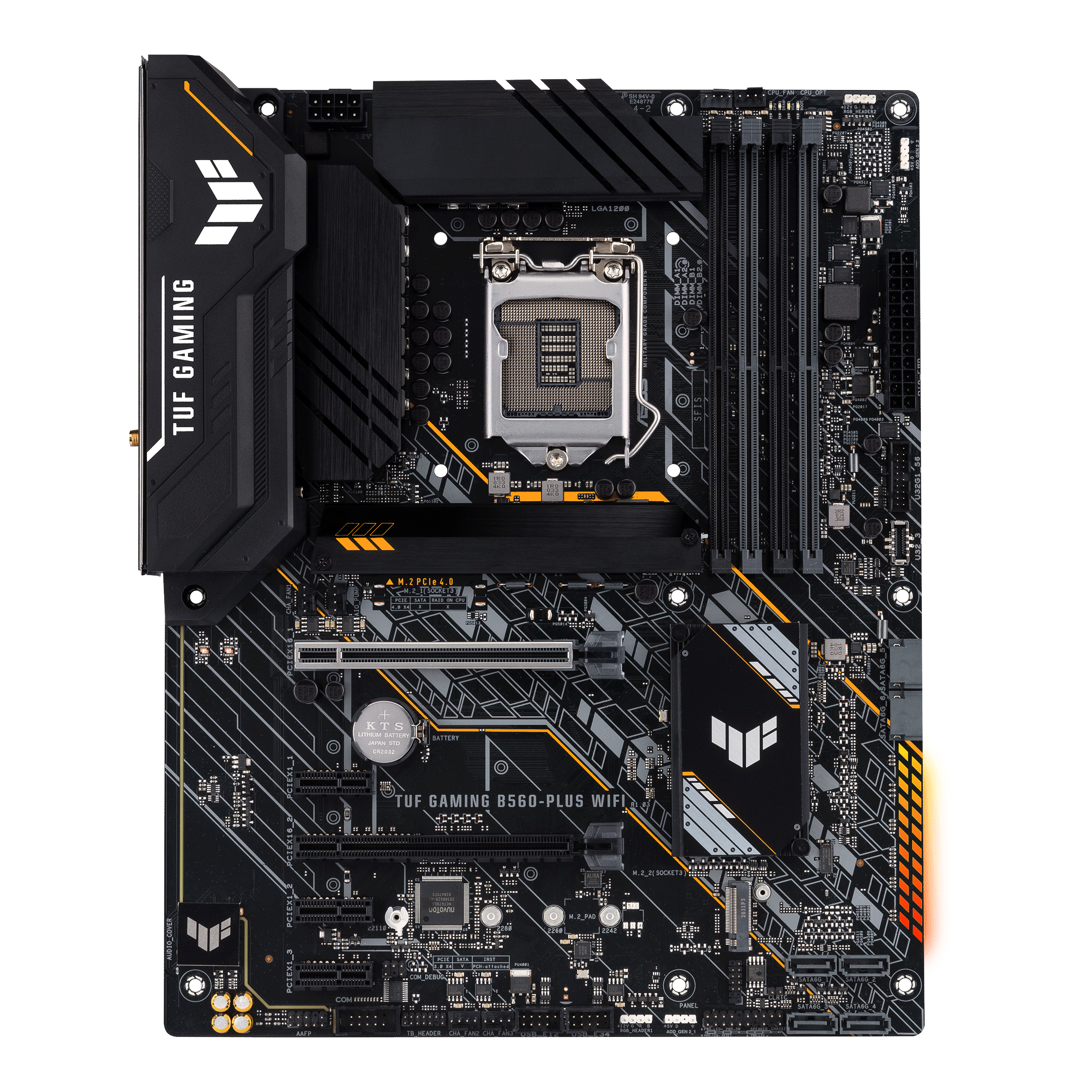

Asus TUF B560-PLUS GAMING, Intel LGA1200, B560, 2xPCI Express, ATX, 4xDDR4, 2xM.2 + SATA3, HDMI/DP, USB-C, 7.1 audio, 2.5Gbe LAN, WiFi 6, Bluetooth, Aura Sync RGB
ASUS 90MB1740-M0EAY0
Intel® B560 (LGA 1200) ATX motherboard, 8+1 DrMOS Power stages , PCIe 4.0 support, DDR4 5000 (OC), Dual M.2 slot with flexible heatsink, HDMI 2.0, DisplayPort 1.4, SATA 6Gbps, 2.5Gb Ethernet, Front USB Type-C®, USB 3.2 Gen 2 Type-C®, Thunderbolt™ 4 support, and Aura Sync RGB lighting
• Intel® LGA 1200 socket: Ready for 10th and 11th gen Intel® Core™ processors
• Enhanced power solution: 8+1 DrMOS power stages, 6-layer PCB , ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
• Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Flexible M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
• Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, front USB 3.2 Gen 1 Type-C®, Thunderbolt 4 support
• Made for online gaming: Intel Wi-Fi 6, Realtek 2.5Gb Ethernet, TUF LANGuard, and Turbo LAN technology
• Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
• Intel® LGA 1200 socket: Ready for 10th and 11th gen Intel® Core™ processors
• Enhanced power solution: 8+1 DrMOS power stages, 6-layer PCB , ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
• Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Flexible M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
• Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, front USB 3.2 Gen 1 Type-C®, Thunderbolt 4 support
• Made for online gaming: Intel Wi-Fi 6, Realtek 2.5Gb Ethernet, TUF LANGuard, and Turbo LAN technology
• Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Art.nr: 10271
Produkten har utgått
Produktspecifikation
Anslutningsmöjligheter
| Antal HDMI | 1 |
| HDMI-version | 2.0 |
| Antal Displayportar | 1 |
| DisplayPort-version | 1.4 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) typ C-portar | 1 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar | 2 |
| Antal Ethernet (RJ-45) | 1 |
| Antal USB 2.0 | 3 |
| S/PDIF-utgång | Ja |
Egenskaper
| Ljudutgångskanaler | 7.1 kanaler |
| Moderkort chipset familj | Intel |
| Moderkort formfaktor | ATX |
| Moderkortets chipset | Intel B560 |
| Ljudchipp | Realtek ALC897 |
Expansionsplatser
| PCI Express x16 (Gen 3.x) | 1 |
| PCI Express x1 (Gen 3.x) | 3 |
| M.2 (M)-platser | 2 |
| PCI Express x16 (Gen 4.x) platser | 1 |
Internal I/O
| Antal anslutningar för fläktar | 3 |
| USB 2.0 anslutning | 2 |
| Antalet COM anslutningar | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 1 |
| Thunderbolt-anslutningar | 1 |
| Antal SATA III kontakter | 6 |
Minne
| Antal minnesplatser | 4 |
| Maximalt internminne | 128 GB |
| Minnets hastigheter | 2133,2400,2666,2800,2933,3200,3333,3466,3600,3733,4000,4266,4400,4600,4800,5000 MHz |
| Minneskanaler stöd | Dual-channel |
Nätverk
| Typ av ethernet-gränssnitt | 2.5 Gigabit Ethernet |
| Bluetooth | Ja |
| Bluetooth-version | 5.0 |
| Wi-Fi | Ja |
| Wi-Fi-standarder | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| Wi-Fi-standard | Wi-Fi 6 (802.11ax) |
Processor
| Processorsockel | LGA 1200 |
| Processortillverkare | Intel |
Vikt & dimension
| Bredd | 305 mm |
| Djup | 244 mm |
Fabrikat
| Tillverkare | ASUS |
| SKU | 90MB1740-M0EAY0 |
| Produktlänk | https://www.asus.com/Motherboards-Components/Motherboards/All-series/TUF-GAMING-B560-PLUS-WIFI/ |
