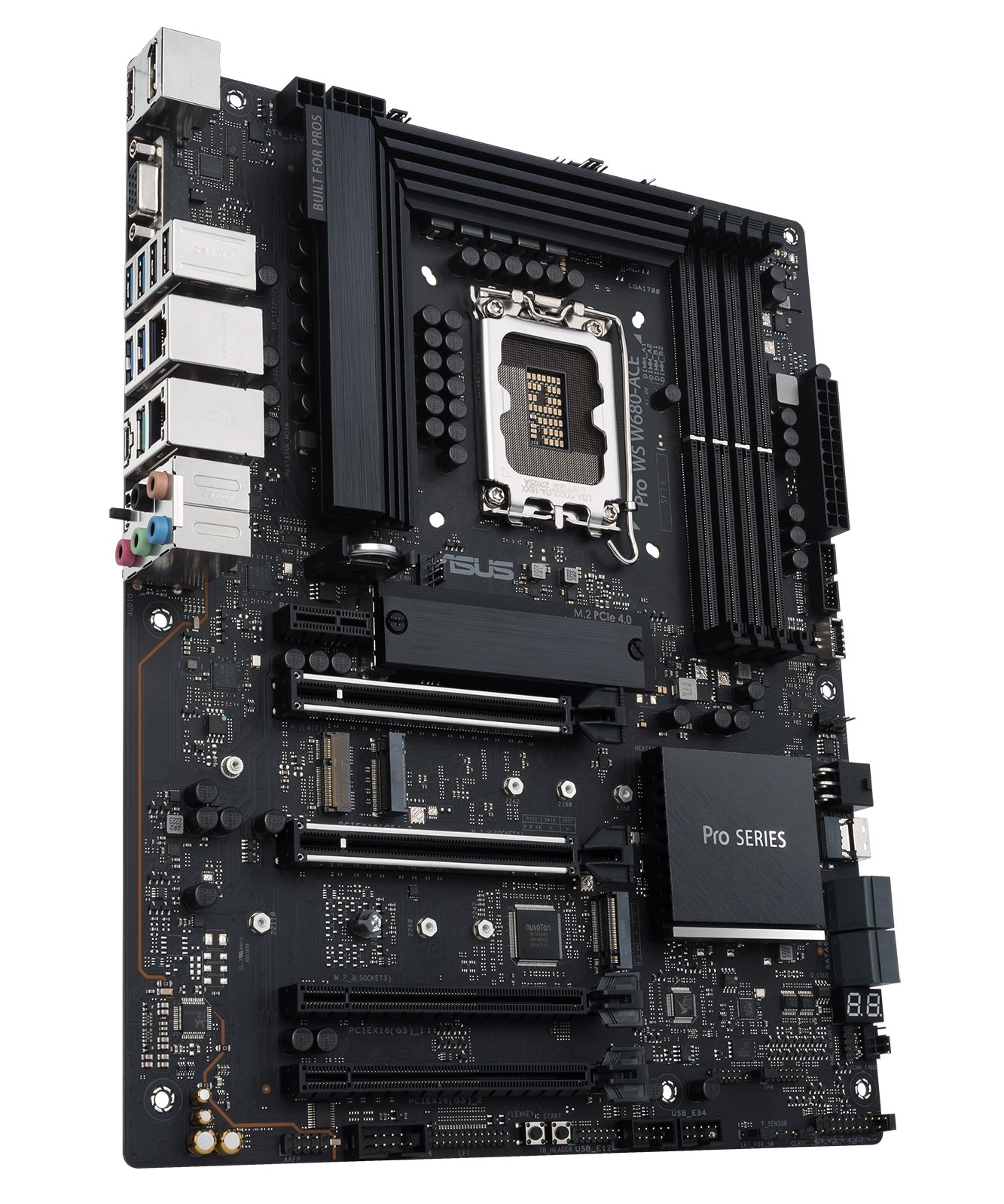

Asus PRO WS W680-ACE, Intel LGA1700, 4xPCI Express, ATX, 4xDDR5, 3xM.2 + SATA3 RAID, VGA/HDMI/DP, USB-C, 2x2.5Gbe LAN
ASUS 90MB1DZ0-M0EAY0
Intel® W680 (LGA 1700) ATX motherboard, PCIe® 5.0, DDR5, dual Intel® 2.5 Gb Ethernet, three PCIe 4.0 M.2 slots, USB 3.2 Gen 2x2 front panel connector, SlimSAS, SATA 6 Gbps, HDMI®, DisplayPort and VGA,
• Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™ processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Enhanced power solution: DrMOS, ProCool connector, alloy chokes and durable capacitors for stable power delivery
• Next-gen connectivity: Dual PCIe 5.0 SafeSlots, dual PCIe 3.0 slots, 3 x M.2 PCIe 4.0, SlimSAS, dual Intel® 2.5Gb Ethernet, front panel USB 3.2 Gen2x2 Type-C®, Thunderbolt™ 4 header support, TPM header, LPT header
• Comprehensive cooling: Large VRM heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4
• Advanced security management: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
• Trusted stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot and SafeDIMM for enhanced durability
• Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™ processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Enhanced power solution: DrMOS, ProCool connector, alloy chokes and durable capacitors for stable power delivery
• Next-gen connectivity: Dual PCIe 5.0 SafeSlots, dual PCIe 3.0 slots, 3 x M.2 PCIe 4.0, SlimSAS, dual Intel® 2.5Gb Ethernet, front panel USB 3.2 Gen2x2 Type-C®, Thunderbolt™ 4 header support, TPM header, LPT header
• Comprehensive cooling: Large VRM heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4
• Advanced security management: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
• Trusted stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot and SafeDIMM for enhanced durability
Art.nr: 13709
Beställningsvara (ber. 2025-11-06)
{$antal} {$enhet} i fjärrlager
6 690 kr
Produktspecifikation
Anslutningsmöjligheter
| Antal HDMI | 1 |
| HDMI-version | 2.1 |
| Antal Displayportar | 1 |
| DisplayPort-version | 1.4 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 1 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar | 4 |
| Uttag för mikrofon/linje in | Ja |
| Antal Ethernet (RJ-45) | 2 |
| Antal VGA (D-Sub) | 1 |
| Antal USB 2.0 anslutningar | 2 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ C-portar | 1 |
Egenskaper
| Ljudutgångskanaler | 7.1 kanaler |
| Moderkort formfaktor | ATX |
Expansionsplatser
| Antal M.2 (M)-platser | 3 |
| PCI Express x1 (Gen 3.x)-kortplatser | 1 |
| PCI Express x16 (Gen 3.x)-kortplatser | 2 |
| PCI Express x16 (Gen 5.x) platser | 2 |
Grafiken
| Stöd för parallellprocessteknik | Stöds inte |
Internal I/O
| Antal anslutningar för fläktar | 3 |
| USB 2.0 anslutning | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 1 |
| Thunderbolt-anslutningar | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2)-anslutningar | 1 |
| Antal SATA III kontakter | 4 |
| Antalet COM-anslutningar | 1 |
| TPM-anslutning | Ja |
Minne
| Antal minnesplatser | 4 |
| Maximalt internminne | 128 GB |
| Minnestyper som stöds | DDR5-SDRAM |
| Minneskanaler | Dual-channel |
| ECC | Ja |
Nätverk
| Typ av ethernet-gränssnitt | 2.5 Gigabit Ethernet |
| Wi-Fi | Nej |
Processor
| Processorsockel | LGA 1700 |
| Processortillverkare | Intel |
Lagringskontroll
| RAID-nivåer | 0, 1, 5, 10 |
Vikt & dimension
| Bredd | 305 mm |
| Djup | 244 mm |
Fabrikat
| Tillverkare | ASUS |
| SKU | 90MB1DZ0-M0EAY0 |
| Produktlänk | https://www.asus.com/motherboards-components/motherboards/workstation/pro-ws-w680-ace/ |
Anslutningsmöjligheter
| Antal HDMI | 1 |
| HDMI-version | 2.1 |
| Antal Displayportar | 1 |
| DisplayPort-version | 1.4 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 1 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar | 4 |
| Uttag för mikrofon/linje in | Ja |
| Antal Ethernet (RJ-45) | 2 |
| Antal VGA (D-Sub) | 1 |
| Antal USB 2.0 anslutningar | 2 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ C-portar | 1 |
Egenskaper
| Ljudutgångskanaler | 7.1 kanaler |
| Moderkort formfaktor | ATX |
Expansionsplatser
| Antal M.2 (M)-platser | 3 |
| PCI Express x1 (Gen 3.x)-kortplatser | 1 |
| PCI Express x16 (Gen 3.x)-kortplatser | 2 |
| PCI Express x16 (Gen 5.x) platser | 2 |
Grafiken
| Stöd för parallellprocessteknik | Stöds inte |
Internal I/O
| Antal anslutningar för fläktar | 3 |
| USB 2.0 anslutning | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 1 |
| Thunderbolt-anslutningar | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2)-anslutningar | 1 |
| Antal SATA III kontakter | 4 |
| Antalet COM-anslutningar | 1 |
| TPM-anslutning | Ja |
Minne
| Antal minnesplatser | 4 |
| Maximalt internminne | 128 GB |
| Minnestyper som stöds | DDR5-SDRAM |
| Minneskanaler | Dual-channel |
| ECC | Ja |
Nätverk
| Typ av ethernet-gränssnitt | 2.5 Gigabit Ethernet |
| Wi-Fi | Nej |
Processor
| Processorsockel | LGA 1700 |
| Processortillverkare | Intel |
Lagringskontroll
| RAID-nivåer | 0, 1, 5, 10 |
Vikt & dimension
| Bredd | 305 mm |
| Djup | 244 mm |
Fabrikat
| Tillverkare | ASUS |
| SKU | 90MB1DZ0-M0EAY0 |
| Produktlänk | https://www.asus.com/motherboards-components/motherboards/workstation/pro-ws-w680-ace/ |
