Asus ROG MAXIMUS Z790 FORMULA, Intel LGA1700, 3xPCI Express, ATX, 4xDDR5, 5xM.2 + SATA3 RAID, HDMI/2xTB4, USB-C, SupremeFX audio, 5Gbe LAN, WiFi 7, Bluetooth 5.4, Aura Sync RGB
ASUS 90MB1FS0-M0EAY0
ROG MAXIMUS Z790
FORMULA

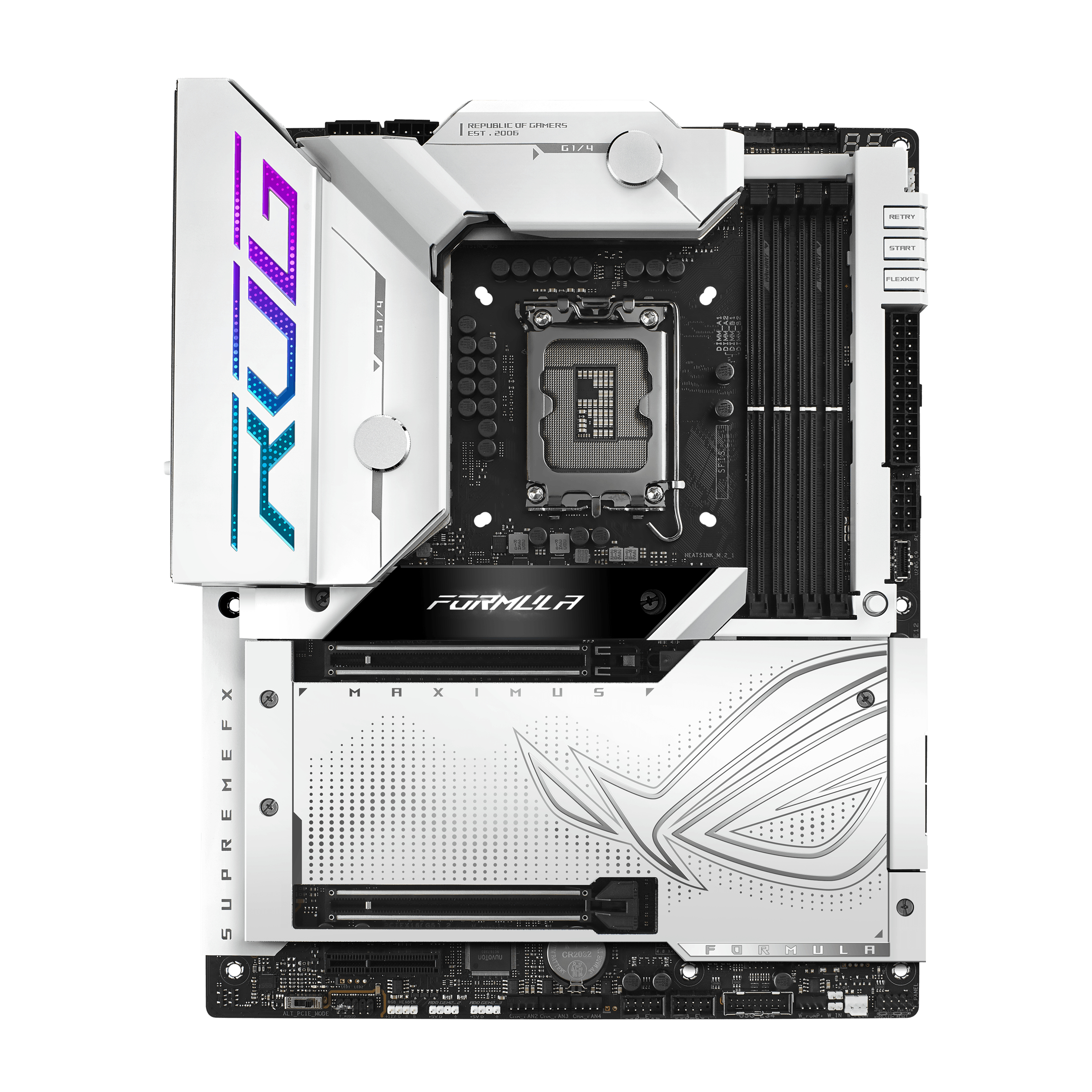

The ROG Maximus Z790 Formula is the ultimate motherboard to feature our head-turning Moonlight White aesthetic. Beneath this bold expression lies a powerhouse arsenal of features, including the exclusive HybridChill VRM cooling system ready to elevate 14th-gen Intel® processors, advanced DDR5 settings, a multitude of PCIe 5.0 slots for both graphics cards and storage, blistering Intel® Wi-Fi 7 networking and a full slate of customizable ARGB lightning to make your premium build truly stand out from the crowd.
FORMULA
The ROG Maximus Z790 Formula is the ultimate motherboard to feature our head-turning Moonlight White aesthetic. Beneath this bold expression lies a powerhouse arsenal of features, including the exclusive HybridChill VRM cooling system ready to elevate 14th-gen Intel® processors, advanced DDR5 settings, a multitude of PCIe 5.0 slots for both graphics cards and storage, blistering Intel® Wi-Fi 7 networking and a full slate of customizable ARGB lightning to make your premium build truly stand out from the crowd.
Art.nr: 16303
Produkten har utgått
Produktspecifikation
Anslutningsmöjligheter
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 5 |
| Antal HDMI | 1 |
| HDMI-version | 2.1 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar | 4 |
| Uttag för mikrofon/linje in | Ja |
| Hörlursutgångar | 1 |
| Antal Ethernet (RJ-45) | 1 |
| Antal Thunderbolt-portar | 2 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ C-portar | 1 |
| S/PDIF-utgång | Ja |
Egenskaper
| Ljudutgångskanaler | 7.1 kanaler |
| Moderkort formfaktor | ATX |
| Moderkortets chipset | Intel Z790 |
| Ljudchipp | Realtek ALC4082 |
Expansionsplatser
| Antal M.2 (M)-platser | 5 |
| PCI Express x16 (Gen 5.x) platser | 2 |
Grafiken
| Stöd för parallellprocessteknik | Stöds inte |
Internal I/O
| Antal anslutningar för fläktar | 4 |
| USB 2.0 anslutning | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2)-anslutningar | 1 |
| Antal SATA III kontakter | 4 |
Minne
| Antal minnesplatser | 4 |
| Maximalt internminne | 192 GB |
| Minnestyper som stöds | DDR5-SDRAM |
| Minnets hastigheter | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,8000 MHz |
| Minneskanaler | Dubbla kanaler |
Nätverk
| Typ av ethernet-gränssnitt | 5 Gigabit Ethernet |
| Bluetooth | Ja |
| Bluetooth-version | 5.4 |
| Wi-Fi | Ja |
| Wi-Fi-standard | Wi-Fi 7 (802.11be) |
Processor
| Processorsockel | LGA 1700 |
| Processortillverkare | Intel |
Lagringskontroll
| RAID-nivåer | 0, 1, 5, 10 |
Vikt & dimension
| Bredd | 305 mm |
| Djup | 244 mm |
Fabrikat
| Tillverkare | ASUS |
| SKU | 90MB1FS0-M0EAY0 |
| Produktlänk | https://rog.asus.com/motherboards/rog-maximus/rog-maximus-z790-formula/ |
Anslutningsmöjligheter
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 5 |
| Antal HDMI | 1 |
| HDMI-version | 2.1 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar | 4 |
| Uttag för mikrofon/linje in | Ja |
| Hörlursutgångar | 1 |
| Antal Ethernet (RJ-45) | 1 |
| Antal Thunderbolt-portar | 2 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ C-portar | 1 |
| S/PDIF-utgång | Ja |
Egenskaper
| Ljudutgångskanaler | 7.1 kanaler |
| Moderkort formfaktor | ATX |
| Moderkortets chipset | Intel Z790 |
| Ljudchipp | Realtek ALC4082 |
Expansionsplatser
| Antal M.2 (M)-platser | 5 |
| PCI Express x16 (Gen 5.x) platser | 2 |
Grafiken
| Stöd för parallellprocessteknik | Stöds inte |
Internal I/O
| Antal anslutningar för fläktar | 4 |
| USB 2.0 anslutning | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2)-anslutningar | 1 |
| Antal SATA III kontakter | 4 |
Minne
| Antal minnesplatser | 4 |
| Maximalt internminne | 192 GB |
| Minnestyper som stöds | DDR5-SDRAM |
| Minnets hastigheter | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,8000 MHz |
| Minneskanaler | Dubbla kanaler |
Nätverk
| Typ av ethernet-gränssnitt | 5 Gigabit Ethernet |
| Bluetooth | Ja |
| Bluetooth-version | 5.4 |
| Wi-Fi | Ja |
| Wi-Fi-standard | Wi-Fi 7 (802.11be) |
Processor
| Processorsockel | LGA 1700 |
| Processortillverkare | Intel |
Lagringskontroll
| RAID-nivåer | 0, 1, 5, 10 |
Vikt & dimension
| Bredd | 305 mm |
| Djup | 244 mm |
Fabrikat
| Tillverkare | ASUS |
| SKU | 90MB1FS0-M0EAY0 |
| Produktlänk | https://rog.asus.com/motherboards/rog-maximus/rog-maximus-z790-formula/ |
