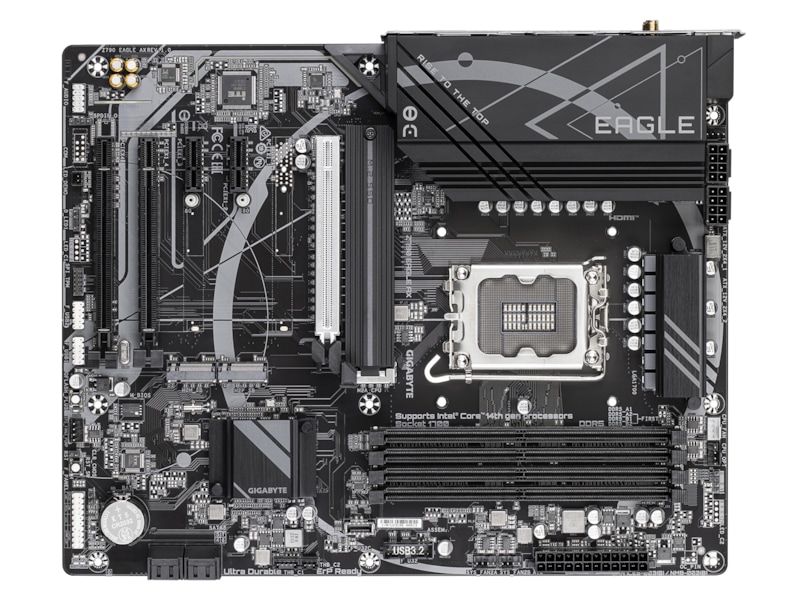

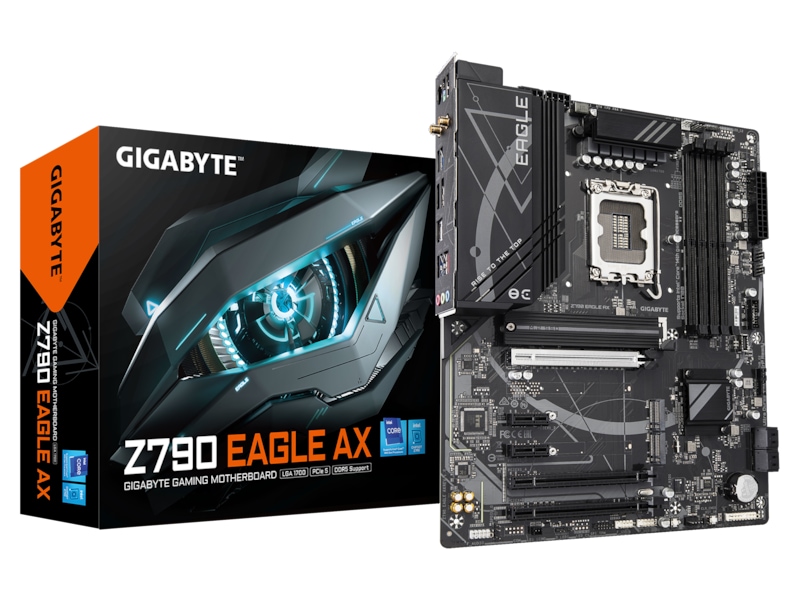

Gigabyte Z790 EAGLE AX WIFI D5, Intel LGA1700, ATX, 2xPCI Express, 4xDDR5, 3xM.2 + SATA3 RAID, HDMI/DP, USB-C, 2.5GbE LAN, WiFi 6E, Bluetooth 5.3, RGB Fusion
Gigabyte Z790 EAGLE AX
• Supports Intel® Core™ 14th/ 13th /12th processors
• Unparalleled Performance:Twin 12*+1+1 Phases Digital VRM Solution
• Dual Channel DDR5:4*DIMMs with XMP 3.0 Memory Module Support
• Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch:PCIe 5.0x16 Slot with Quick Release Design
• Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax
• Extended Connectivity:DP, HDMI, Rear USB-C® 10Gb/s
• Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
• * 6+6 phases parallel power design
• Unparalleled Performance:Twin 12*+1+1 Phases Digital VRM Solution
• Dual Channel DDR5:4*DIMMs with XMP 3.0 Memory Module Support
• Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch:PCIe 5.0x16 Slot with Quick Release Design
• Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax
• Extended Connectivity:DP, HDMI, Rear USB-C® 10Gb/s
• Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
• * 6+6 phases parallel power design
Art.nr: 19434
Beställningsvara (2-3 dagar)
{$antal} {$enhet} i fjärrlager
2 249 kr
Produktspecifikation

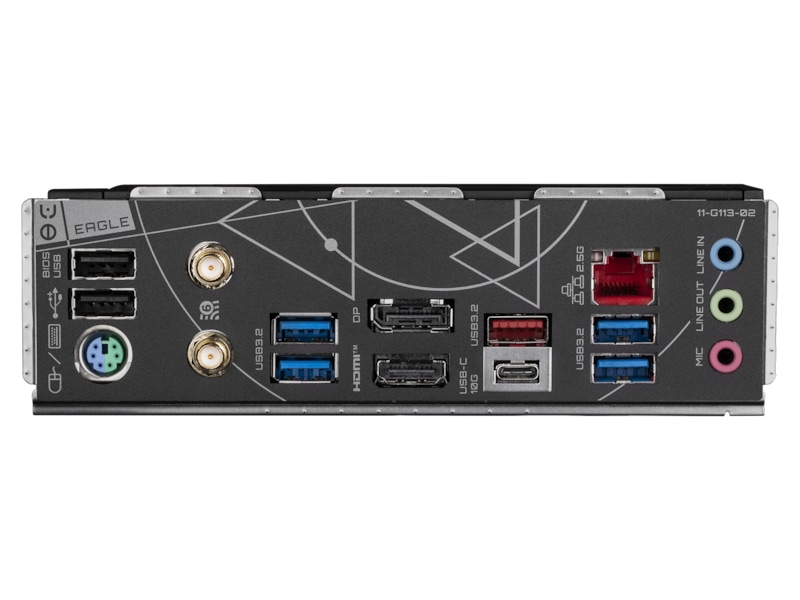

Anslutningsmöjligheter
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 1 |
| Antal HDMI | 1 |
| HDMI-version | 2.1 |
| Antal Displayportar | 1 |
| DisplayPort-version | 1.2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar | 4 |
| Antal USB 3.2 Gen 2x2 typ C-portar | 1 |
| Uttag för mikrofon/linje in | Ja |
| Hörlursutgångar | 1 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1)typ C-portar | 0 |
| Antal Ethernet (RJ-45) | 1 |
| Antal VGA (D-Sub) | 0 |
| Antal USB 2.0 anslutningar | 2 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ C-portar | 0 |
| S/PDIF-utgång | Ja |
Egenskaper
| Ljudutgångskanaler | 7.1 kanaler |
| Moderkort formfaktor | ATX |
| Moderkortets chipset | Intel Z790 Express |
| Ljudchipp | Realtek ALC897 |
Expansionsplatser
| PCI Express x16 (Gen 4.x) platser | 1 |
| Antal M.2 (M)-platser | 3 |
| PCI Express x1 (Gen 3.x)-kortplatser | 2 |
| PCI Express x16 (Gen 3.x)-kortplatser | 1 |
| PCI Express x16 (Gen 5.x) platser | 1 |
Grafiken
| Stöd för parallellprocessteknik | Stöds inte |
| Maximal upplösning | 4096 x 2304 pixlar |
Internal I/O
| USB 2.0 anslutning | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 1 |
| Thunderbolt-anslutningar | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2)-anslutningar | 1 |
| Antal SATA III kontakter | 4 |
| TPM-anslutning | Ja |
Minne
| Antal minnesplatser | 4 |
| Maximalt internminne | 192 GB |
| Minnestyper som stöds | DDR5-SDRAM |
| Minnets hastigheter | 4400,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz |
| Minneskanaler | Dubbla kanaler |
Nätverk
| Typ av ethernet-gränssnitt | 2.5 Gigabit Ethernet |
| Bluetooth | Ja |
| Bluetooth-version | 5.3 |
| Wi-Fi | Ja |
| Wi-Fi-standard | Wi-Fi 6E (802.11ax) |
Processor
| Processorsockel | LGA 1700 |
| Processortillverkare | Intel |
Lagringskontroll
| RAID-nivåer | 0, 1, 5, 10 |
Vikt & dimension
| Bredd | 305 mm |
| Djup | 244 mm |
Fabrikat
| Tillverkare | Gigabyte |
| SKU | Z790 EAGLE AX |
| Produktlänk | https://www.gigabyte.com/Motherboard/Z790-EAGLE-AX-rev-1x#kf |
Anslutningsmöjligheter
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 1 |
| Antal HDMI | 1 |
| HDMI-version | 2.1 |
| Antal Displayportar | 1 |
| DisplayPort-version | 1.2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar | 4 |
| Antal USB 3.2 Gen 2x2 typ C-portar | 1 |
| Uttag för mikrofon/linje in | Ja |
| Hörlursutgångar | 1 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1)typ C-portar | 0 |
| Antal Ethernet (RJ-45) | 1 |
| Antal VGA (D-Sub) | 0 |
| Antal USB 2.0 anslutningar | 2 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ C-portar | 0 |
| S/PDIF-utgång | Ja |
Egenskaper
| Ljudutgångskanaler | 7.1 kanaler |
| Moderkort formfaktor | ATX |
| Moderkortets chipset | Intel Z790 Express |
| Ljudchipp | Realtek ALC897 |
Expansionsplatser
| PCI Express x16 (Gen 4.x) platser | 1 |
| Antal M.2 (M)-platser | 3 |
| PCI Express x1 (Gen 3.x)-kortplatser | 2 |
| PCI Express x16 (Gen 3.x)-kortplatser | 1 |
| PCI Express x16 (Gen 5.x) platser | 1 |
Grafiken
| Stöd för parallellprocessteknik | Stöds inte |
| Maximal upplösning | 4096 x 2304 pixlar |
Internal I/O
| USB 2.0 anslutning | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 1 |
| Thunderbolt-anslutningar | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2)-anslutningar | 1 |
| Antal SATA III kontakter | 4 |
| TPM-anslutning | Ja |
Minne
| Antal minnesplatser | 4 |
| Maximalt internminne | 192 GB |
| Minnestyper som stöds | DDR5-SDRAM |
| Minnets hastigheter | 4400,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz |
| Minneskanaler | Dubbla kanaler |
Nätverk
| Typ av ethernet-gränssnitt | 2.5 Gigabit Ethernet |
| Bluetooth | Ja |
| Bluetooth-version | 5.3 |
| Wi-Fi | Ja |
| Wi-Fi-standard | Wi-Fi 6E (802.11ax) |
Processor
| Processorsockel | LGA 1700 |
| Processortillverkare | Intel |
Lagringskontroll
| RAID-nivåer | 0, 1, 5, 10 |
Vikt & dimension
| Bredd | 305 mm |
| Djup | 244 mm |
Fabrikat
| Tillverkare | Gigabyte |
| SKU | Z790 EAGLE AX |
| Produktlänk | https://www.gigabyte.com/Motherboard/Z790-EAGLE-AX-rev-1x#kf |
